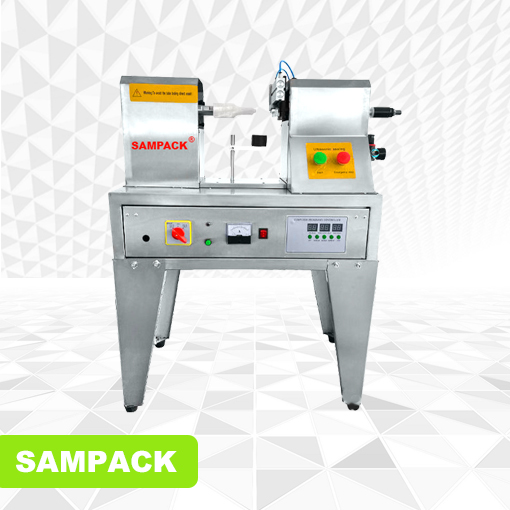

Ultrasonic Sealing Machine
Ultrasonic Sealing Machine converts high-frequency electric energy into mechanical energy through a transducer, the mechanical energy is conducted to a hose workpiece through a tool head to enable the jointed surface of the certain amplitude and be smelted, so that a gluing process is implemented instantaneously, and the process is known as Ultrasonic Hose Welding. This machine comprises an ultrasonic generator, a program controller system, an electronic protection system, a cooling system, a transducer system, a pneumatic control system, a stander and the like.
Additional information
| Voltage | AC 220 V +/- 10 V/50 Hz |
|---|---|
| Power | 1500 W / 2000 +/- 10 % |
| Ultrasonic Frequency | 20 kHz – 15 kHz |
| Delay Time | 0.1 – 9.9 / Seconds |
| Sealing Time | 0.1 – 9.9 / Seconds |
| Edge Cutting Time | 0.1 – 9.9 / Seconds |
| Sealing Head | 80.mm |
| Air Pressure | 0.15 – 0.8 MPAa |
| Work Bench | 300.mm x 325.mm |
| Machine Dimension | 1100 x 650 x 530.mm |
| Machine Weight | 75.Kg |
Ultrasonic Sealing Machine converts high-frequency electric energy into mechanical energy through a transducer, the mechanical energy is conducted to a hose workpiece through a tool head to enable the jointed surface of the certain amplitude and be smelted, so that a gluing process is implemented instantaneously, and the process is known as Ultrasonic Hose Welding. This machine comprises an ultrasonic generator, a program controller system, an electronic protection system, a cooling system, a transducer system, a pneumatic control system, a stander and the like.
